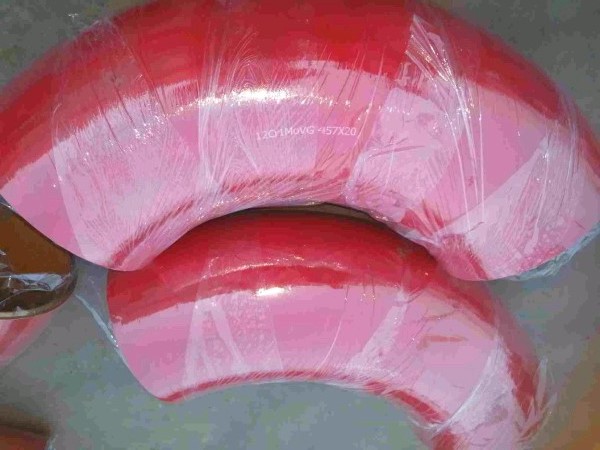

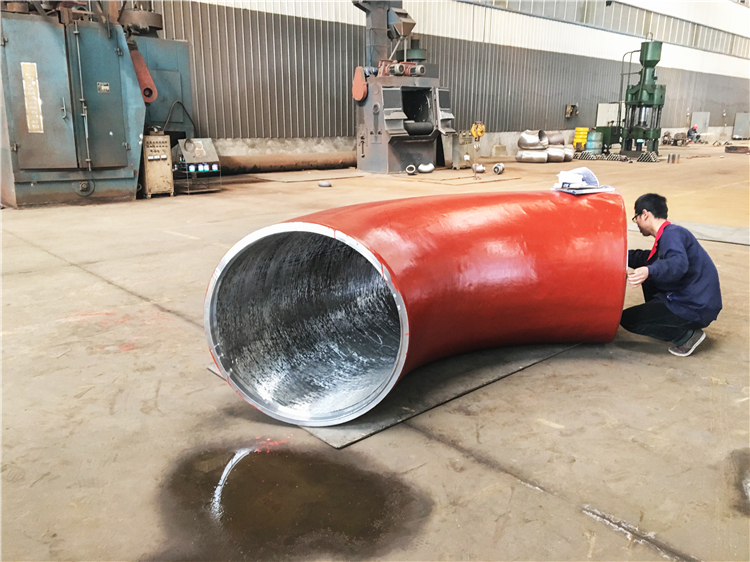

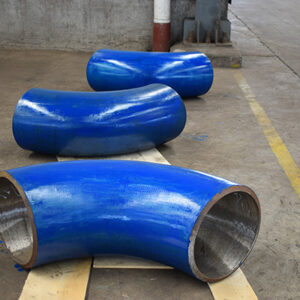

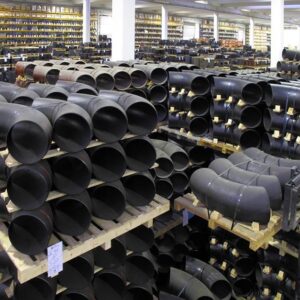

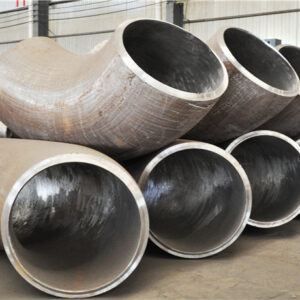

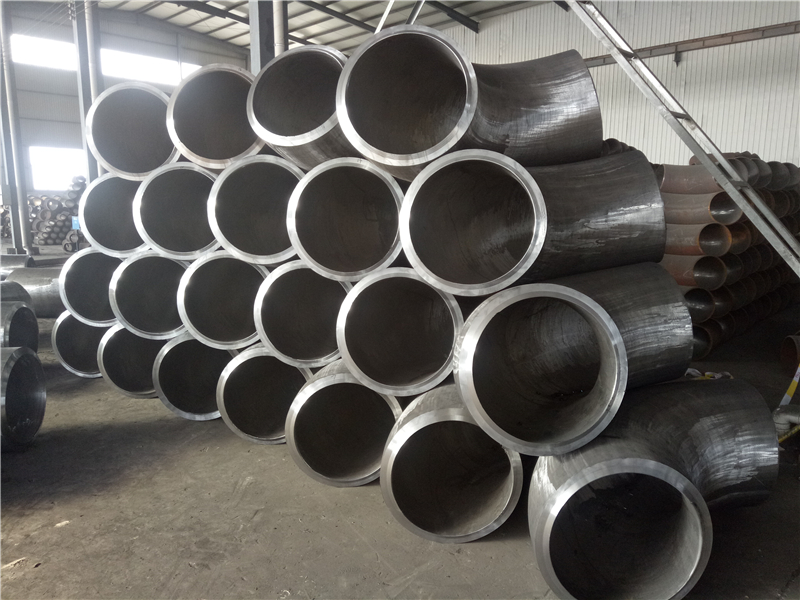

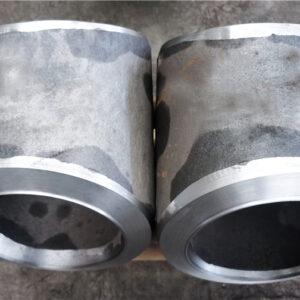

An alloy elbow is a type of pipe fitting made from alloy materials, designed to change the direction of flow in a piping system. It is widely used in industries requiring high strength, corrosion resistance, and durability under extreme conditions, such as oil & gas, chemical processing, power plants, and petrochemical industries.
Key Features of Alloy Elbows:
Material Composition – Made from high-performance alloys like:
Stainless Steel Alloys (304, 316, 321, 347)
Nickel Alloys (Inconel 600, 625; Monel 400)
Copper Alloys (Hastelloy C276, Cu-Ni)
Titanium Alloys (Grade 2, Grade 5)
Duplex & Super Duplex Steels (2205, 2507)
Types of Alloy Elbows:
90° Elbow – Changes direction by 90 degrees.
45° Elbow – Changes direction by 45 degrees.
180° Elbow (Return Bend) – Reverses flow direction completely.
Short Radius (SR) & Long Radius (LR) Elbows – Differ in curvature for varying flow dynamics.
Manufacturing Methods:
Seamless – High-pressure applications, no welded joints.
Welded – Cost-effective for low-pressure systems.
Mandrel Bent – Smooth bends for better flow efficiency.
Advantages:
High Corrosion Resistance – Suitable for harsh chemicals and seawater.
Heat & Pressure Resistance – Works in extreme temperatures and high-pressure systems.
Long Service Life – Durable with minimal maintenance.
Customizable – Available in various sizes, schedules (SCH 10, SCH 40, etc.), and standards (ASTM, ASME, ANSI).
Applications:
Oil & gas pipelines
Chemical processing plants
Power generation (thermal/nuclear)
Aerospace & marine engineering
Pharmaceutical & food processing (where hygiene is critical)
Conclusion
Alloy elbows are essential for piping systems that demand superior strength and resistance to corrosion, pressure, and temperature. The choice of alloy depends on the specific industrial requirements, ensuring optimal performance and safety.
Submit your project requirements now and our material specialists will respond within 24 hours with tailored solutions.
