Forged pipe fittings are high-strength components manufactured through the forging process, which involves shaping metal under extreme pressure to enhance mechanical properties. These fittings are widely used in high-pressure, high-temperature, and corrosive environments due to their superior durability and reliability compared to cast or welded fittings.
Classification of Forged Pipe Fittings
1. By Connection Type
Socket Weld Fittings – Used for small-diameter, high-pressure piping systems.
Threaded (Screwed) Fittings – Suitable for low-pressure applications where welding is not feasible.
Butt Weld Fittings – Used in high-pressure and high-temperature pipelines.
2. By Function
Elbows (90°, 45°) – Change flow direction.
Tees (Equal, Reducing) – Split or combine flow.
Reducers (Concentric, Eccentric) – Connect different pipe sizes.

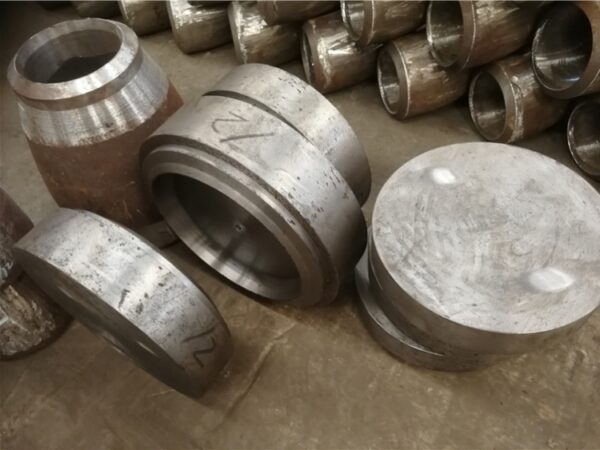

Caps & Plugs – Seal pipe ends.
Couplings & Unions – Join pipes securely.
Crosses – Four-way flow distribution.
3. By Pressure Rating
3000#, 6000#, 9000# – Higher ratings indicate greater pressure resistance.
Materials Used in Forged Fittings
| Material | Key Properties | Common Applications |
|---|---|---|
| Carbon Steel (A105) | High strength, cost-effective | Oil & gas, general plumbing |
| Stainless Steel (SS304, SS316) | Corrosion-resistant | Chemical, food, marine industries |
| Alloy Steel (A182 F11, F22) | Heat & pressure resistant | Power plants, refineries |
| Duplex Steel (A182 F51, F53) | High chloride resistance | Offshore, desalination |
| Nickel Alloys (Inconel, Monel) | Extreme corrosion/heat resistance | Aerospace, chemical processing |
Characteristics of Forged Fittings
✔ High Strength – Better grain structure than cast fittings.
✔ Superior Fatigue Resistance – Withstands cyclic stress.
✔ Leak-Proof – No porosity defects (unlike cast fittings).
✔ Precision Machining – Tight tolerances for secure connections.
✔ Corrosion & Temperature Resistance – Suitable for harsh environments.
Applications of Forged Pipe Fittings
Oil & Gas – Pipelines, refineries, offshore rigs.
Chemical & Petrochemical – Acid/alkali handling.
Power Generation – Boilers, steam lines.
Shipbuilding & Marine – Seawater-resistant systems.
Aerospace & Defense – High-performance fluid systems.
Pharmaceutical & Food – Hygienic, sterile piping.
