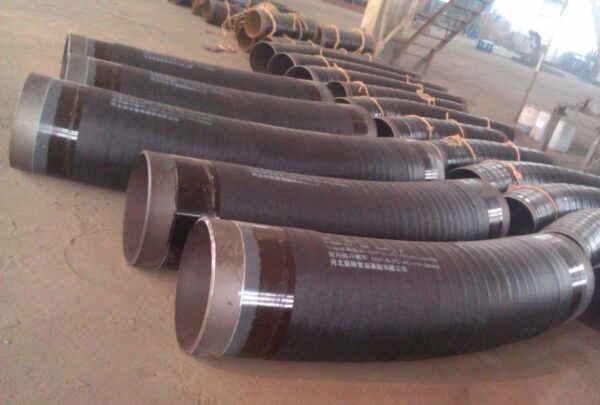

alloy bend is a pipe fitting used to change the direction of fluid flow in high-performance piping systems. Unlike standard elbows, bends often have a larger radius, ensuring smoother flow with reduced pressure drop and turbulence. Alloy bends are made from high-strength metallic alloys, offering superior resistance to corrosion, extreme temperatures, and mechanical stress.
1. Key Features of Alloy Bends
Material Composition
Stainless Steel Alloys (304, 316, 321, 347) – For general corrosion resistance.
Nickel Alloys (Inconel 625, Hastelloy C276) – For high-temperature and acidic environments.
Titanium Alloys (Grade 2, Grade 5) – Lightweight with excellent corrosion resistance.
Duplex & Super Duplex Steels (2205, 2507) – High strength and chloride resistance.
Copper-Nickel Alloys (Cu-Ni 90/10, 70/30) – Used in marine and desalination systems.
2. Types of Alloy Bends
By Angle:
45° Bend – Moderate direction change.
90° Bend – Most common for perpendicular redirection.
180° Bend (Return Bend) – Complete flow reversal.
By Radius:
Long Radius (LR) Bend (R=1.5D or more) – Smoother flow, less erosion.
Short Radius (SR) Bend (R=1D) – Compact, used where space is limited.
Custom Radius Bends – For specialized applications.
3. Manufacturing Methods
Hot Forming – Heated and bent for high-thickness pipes.
Cold Forming – Used for smaller diameters and thinner walls.
Mandrel Bending – Precision bending with internal support to prevent wrinkles.
Welded Bends – Fabricated from alloy plates for large diameters.
4. Advantages
High Corrosion Resistance – Ideal for chemical, oil & gas, and marine applications.
Thermal Stability – Maintains strength at high temperatures.
Pressure Resistance – Suitable for high-pressure pipelines.
Longevity – Durable with minimal maintenance.
5. Applications
Oil & Gas Industry – Refineries, offshore platforms.
Chemical & Petrochemical Plants – Acidic and caustic fluid handling.
Power Generation – Boilers, heat exchangers, nuclear plants.
Shipbuilding & Desalination – Seawater-resistant piping.
Aerospace & Defense – High-performance fluid systems.
Conclusion
Alloy bends are critical components in industries where standard carbon steel bends fail due to corrosion, high pressure, or extreme temperatures. Their ability to maintain structural integrity in harsh environments makes them indispensable in modern piping systems.
