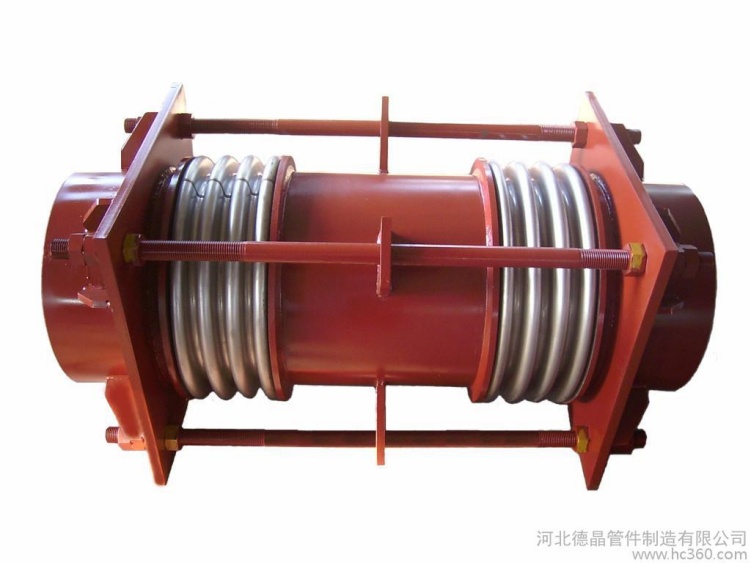

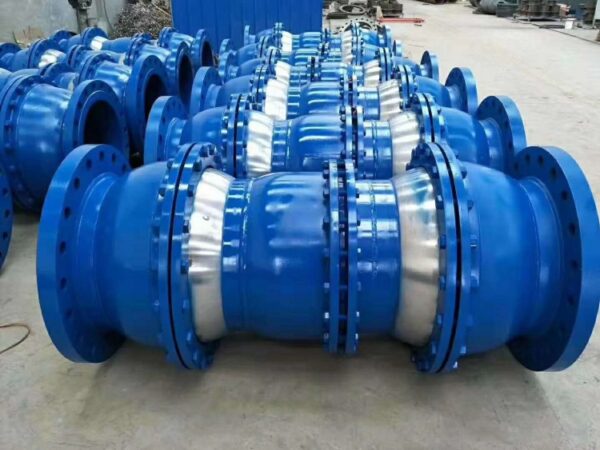

A coal powder pipeline compensator is a specialized device designed to absorb and compensate for movements within pipelines transporting coal powder. These movements can occur due to thermal expansion and contraction, vibrations, or ground shifts. The primary purpose of these compensators is to mitigate stress on the pipeline system, prevent leaks, and ensure the safe and efficient transport of coal powder.
1. Key Functions
Thermal Expansion Compensation: Coal powder pipelines are subject to temperature fluctuations, which can cause the pipes to expand and contract. Compensators absorb these movements, reducing stress on the pipeline and extending its lifespan.
Vibration Reduction: By absorbing the energy generated by fluid flow and mechanical vibrations, compensators minimize wear and tear on the pipeline, resulting in a quieter and more efficient system.
Leak Prevention: High-quality compensators are designed to prevent coal powder leakage, ensuring the integrity of the pipeline and reducing the risk of environmental contamination.
2. Types of Coal Powder Pipeline Compensators
Axial Compensators: These are designed to absorb axial movements along the pipeline. They are suitable for applications where the primary concern is linear expansion and contraction.
Lateral Compensators: These allow for lateral deflections in the pipeline, accommodating side-to-side movements.
Angular Compensators: These handle angular movements and are useful in applications where the pipeline needs to bend or change direction.
Three-Dimensional Compensators: These advanced compensators can absorb axial, angular, and lateral displacements in any direction. They are highly flexible and ensure free expansion of the boiler and piping.
3. Materials and Construction
Bellows: Typically made from high-quality materials like 1Cr18Ni9Ti or SUS304 stainless steel, these bellows are designed to withstand high temperatures and resist corrosion.
Sealing Mechanisms: Some compensators use inorganic fiber or other advanced materials to prevent coal powder from entering the bellows, ensuring their functionality.
4. Applications
Coal powder pipeline compensators are widely used in various industries, including:
Power Generation: In coal-fired power plants, these compensators ensure the safe transport of coal powder to boilers.
Metallurgy: Used in industrial processes where coal powder is transported through pipelines.
Construction and Building Materials: These compensators are essential in systems that handle abrasive materials like coal powder.
