Concentric reducer

An pipe fitting reducer is a specialized component used in piping systems to connect pipes of different diameters, ensuring a smooth transition in fluid flow. Constructed from high-performance alloys, these reducers are designed to withstand extreme temperatures, corrosive environments, and high-pressure conditions in industries such as oil & gas, chemical processing, power generation, and marine applications.

Key Features of Alloy Reducers

1. Material Composition

Alloy reducers are made from premium-grade materials, including:

Stainless Steel Alloys (304, 316, 321, 347) – Excellent corrosion resistance.

Nickel Alloys (Inconel 600, 625; Hastelloy C276) – Superior heat and chemical resistance.

Titanium Alloys (Grade 2, Grade 5) – Lightweight and highly corrosion-resistant.

Duplex & Super Duplex Steels (2205, 2507) – High strength and chloride resistance.

Copper-Nickel Alloys (Cu-Ni 90/10, 70/30) – Ideal for marine and desalination systems.

2. Types of Alloy Reducers

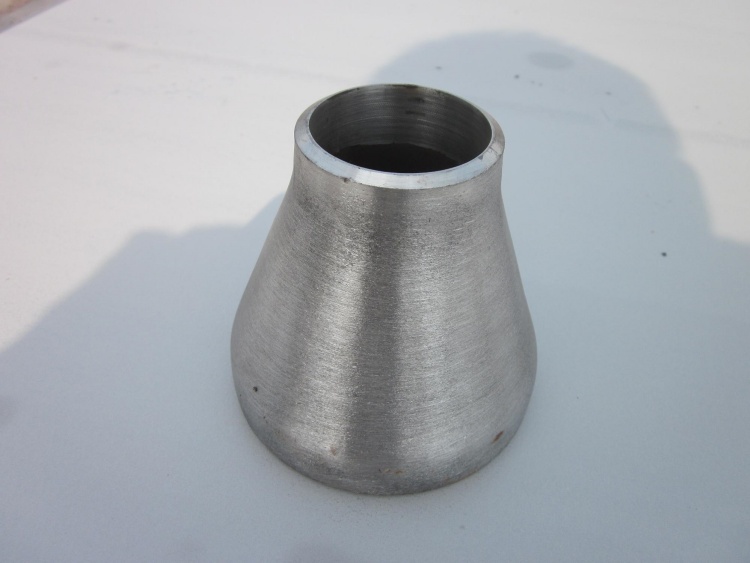

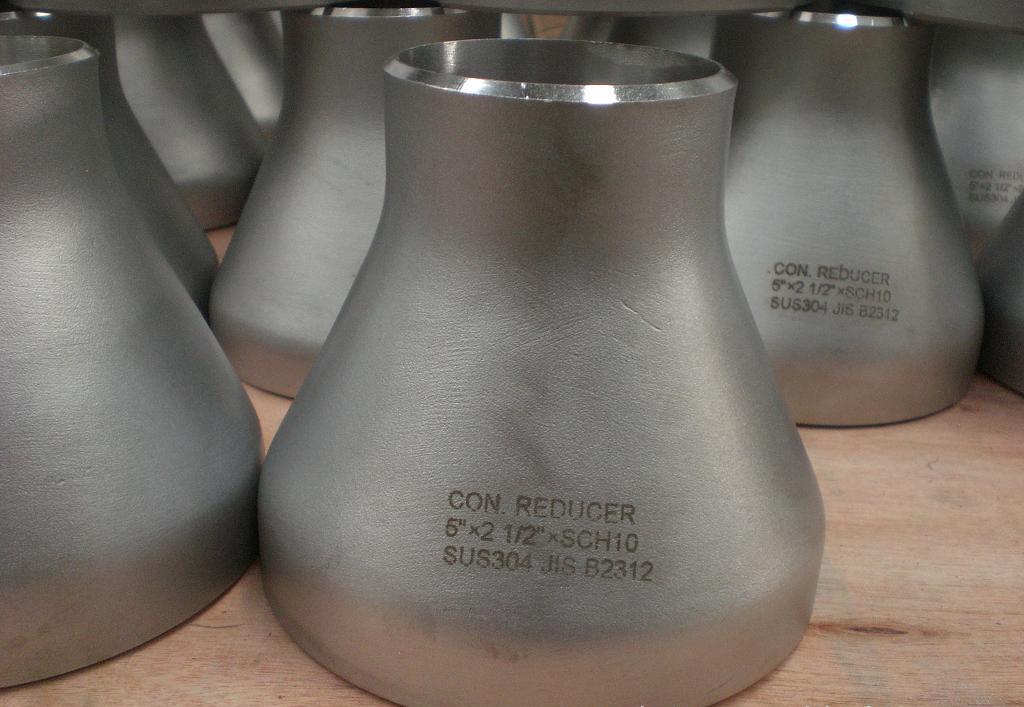

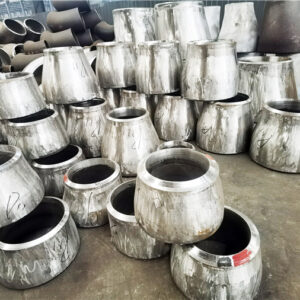

Concentric Reducer – Symmetrical, funnel-shaped design for vertical pipelines, ensuring a smooth flow transition.

Eccentric Reducer – Flat on one side, used in horizontal pipelines to prevent air or gas pockets.

3. Manufacturing Methods

Seamless Reducers – High-pressure applications, no welded joints.

Welded Reducers – Fabricated from alloy plates or pipes, cost-effective for larger sizes.

Forged Reducers – High-strength, precision-machined for critical applications.

4. Advantages

✔ Corrosion Resistance – Performs well in acidic, alkaline, and saline environments.
✔ High-Temperature & Pressure Tolerance – Suitable for extreme operational conditions.
✔ Smooth Flow Transition – Minimizes turbulence and pressure drops.
✔ Durable & Long-Lasting – Resists wear and degradation over time.
✔ Customizable – Available in various sizes, schedules (SCH 10, 40, 80, etc.), and standards (ASTM, ASME, ANSI).

5. Applications

Oil & Gas – Pipeline systems, refineries, and offshore platforms.

Chemical & Petrochemical Plants – Handling corrosive fluids and gases.

Power Plants – Boilers, condensers, and cooling systems.

Water Treatment & Desalination – Seawater and chemical processing.

Pharmaceutical & Food Industries – Hygienic and sterile fluid transfer.

Conclusion

Alloy pipe fitting reducers are vital for ensuring efficient and reliable flow transitions in high-performance piping systems. Their robust construction and resistance to harsh conditions make them indispensable in critical industrial applications.
