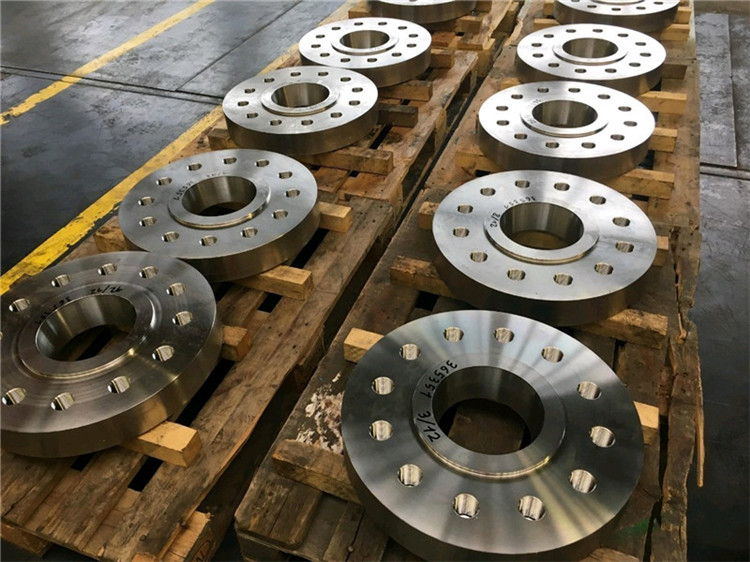

Precision CNC flange

Precision CNC Flanges are high-accuracy pipe connectors manufactured using Computer Numerical Control (CNC) machining for exceptional dimensional consistency, tight tolerances, and superior surface finishes. These flanges are critical in industries where standard off-the-shelf flanges cannot meet strict geometric or material requirements.

Key Features & Advantages

• • 1. Ultra-High Dimensional Accuracy

       • CNC machining ensures tight tolerances (typically ±0.01mm to ±0.05mm) for bore diameter, bolt hole alignment, and face flatness.

       • Ideal for aerospace, semiconductor, and hydraulic systems where misalignment causes leaks or failures.

    2. Customizable Designs

       • Supports complex geometries (e.g., non-standard angles, integrated grooves, or hybrid flange-adaptor designs).

       • Can be machined from solid billet stock for prototype or low-volume production.

    3. Superior Surface Finish

       • Achieves Ra 0.4–1.6 μm (mirror finish possible) to minimize friction and corrosion risks.

       • Optional post-processing: electropolishing (for stainless steel), anodizing (aluminum), or anti-galling coatings.

    4. Material Versatility

       • Compatible with:

         • Stainless Steel (304/316/17-4PH) – Corrosion-resistant, high strength.

         • Titanium (Grade 2/5) – Lightweight, extreme environments.

         • Aluminum (6061/7075) – Weight-sensitive applications.

         • Exotic Alloys (Inconel, Hastelloy) – High-temperature/pressure resistance.

    5. Stress-Optimized Performance

       • Finite Element Analysis (FEA)-driven designs reduce weak points.

       • Reduced micro-cracking risk vs. cast or forged flanges.

Common Applications

• • Aerospace & Defense: Fuel/o hydraulic systems in aircraft/spacecraft.

  • Semiconductor: Ultra-high-purity gas/liquid delivery.

  • Medical & Pharma: Sterile fluid handling (no porosity risk).

  • Energy: Nuclear, hydrogen, or cryogenic piping.
