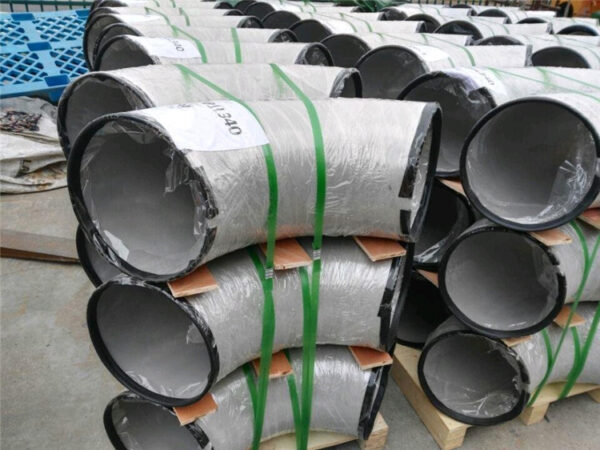

A stainless steel pipe elbow is a type of pipe fitting that is used to change the direction of a pipeline. It is made from stainless steel, which is an alloy of iron with a minimum of 10.5% chromium content by weight. The chromium in stainless steel forms a thin oxide layer on the surface, which provides excellent corrosion resistance.
2. Types
Based on the angle of bend

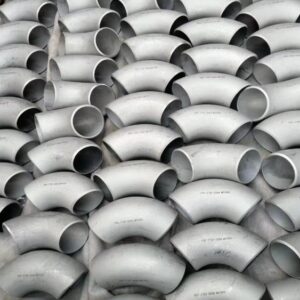

90 – degree elbow: This is the most common type. It is used to make a right – angle turn in the pipeline. For example, in a plumbing system, a 90 – degree elbow can be used to connect a vertical pipe to a horizontal pipe.
45 – degree elbow: It allows the pipe to change direction at a 45 – degree angle. This type of elbow is often used in situations where a more gradual change in direction is required, such as in some industrial process piping systems.
Other angles: There are also elbows with other angles like 180 – degree elbows (also known as return bends) which are used to reverse the direction of the flow.
Based on the manufacturing process
Welded elbow: This type is made by welding two pieces of stainless steel pipe together to form the elbow shape. It is relatively cost – effective and is suitable for applications with lower pressure requirements.
Forged elbow: Forged elbows are made by heating the stainless steel and then using a forging process to shape it. They are stronger and more durable than welded elbows and are used in high – pressure and high – temperature applications.
Molded elbow: This is made by pouring molten stainless steel into a mold of the desired shape. It can produce complex shapes and is used in specialized applications.
3. Applications
Piping systems in industry
In chemical plants, stainless steel pipe elbows are used to transport corrosive fluids such as acids and alkalis because of their excellent resistance to chemical attack. For example, in the production of sulfuric acid, the piping system needs to withstand the highly corrosive nature of the acid, and stainless steel elbows are a suitable choice.
In the food and beverage industry, they are used in the production and packaging processes. The stainless steel material is easy to clean and does not contaminate the food products. For instance, in a brewery, stainless steel elbows are used in the piping that transfers beer from the fermentation tanks to the bottling line.
