Stainless steel pipe tees are essential components in piping systems, used to connect three pipes together, typically allowing for the distribution or collection of fluid flow. Here is a comprehensive introduction to stainless steel pipe tees:
1. Definition

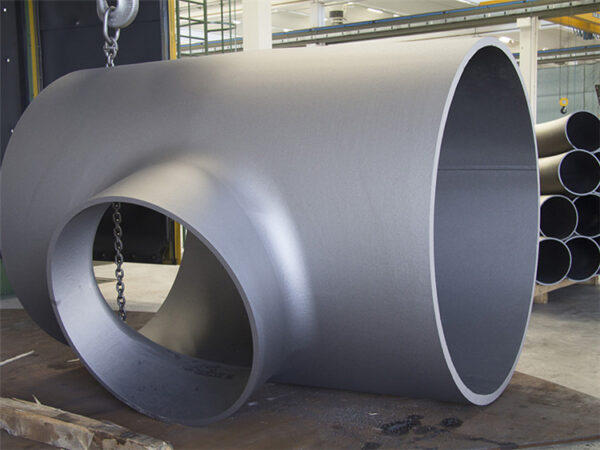

A stainless steel pipe tee is a type of pipe fitting that resembles the letter “T” in shape. It has three openings: two on one end (usually aligned in a straight line) and one perpendicular to them. The material used is stainless steel, which provides excellent corrosion resistance, strength, and durability.
2. Types
a. Based on Branch Orientation
Equal Tee: All three openings (two run ends and one branch end) have the same diameter. This type is used when the same size pipes need to be connected.
Reducing Tee: The branch end has a smaller diameter than the run ends. This is useful for connecting smaller-diameter pipes to a larger main line.
b. Based on Manufacturing Process
Welded Tee: Made by welding pieces of stainless steel together. It is cost-effective but may have lower strength compared to other types.
Forged Tee: Produced through a forging process, which involves heating the metal and shaping it under high pressure. Forged tees are stronger and more durable, making them suitable for high-pressure and high-temperature applications.
Cast Tee: Made by pouring molten stainless steel into a mold. This type can produce complex shapes and is often used for specialized applications.
3. Applications
Industrial Piping Systems
Chemical Plants: Stainless steel tees are used to distribute or combine chemical flows. For example, in a chemical reactor system, a tee can be used to split the flow of a reagent into multiple reaction vessels.
Oil and Gas Industry: In pipelines that transport oil or natural gas, tees are used to branch off supply lines to different processing units or storage tanks.
Pharmaceutical Manufacturing: Used in the production of pharmaceuticals where cleanliness and corrosion resistance are critical. Stainless steel tees help in routing sterile fluids through the processing equipment.
